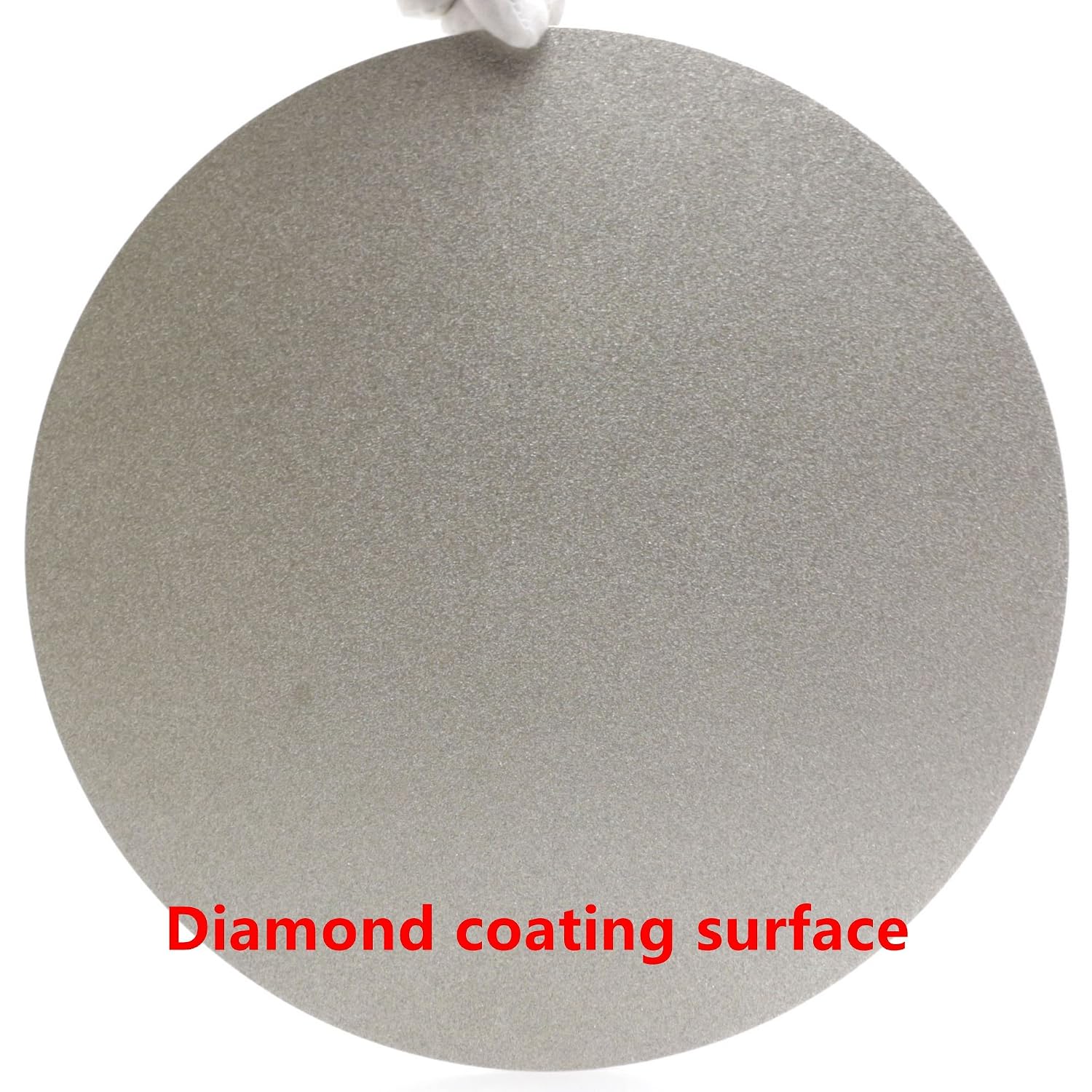

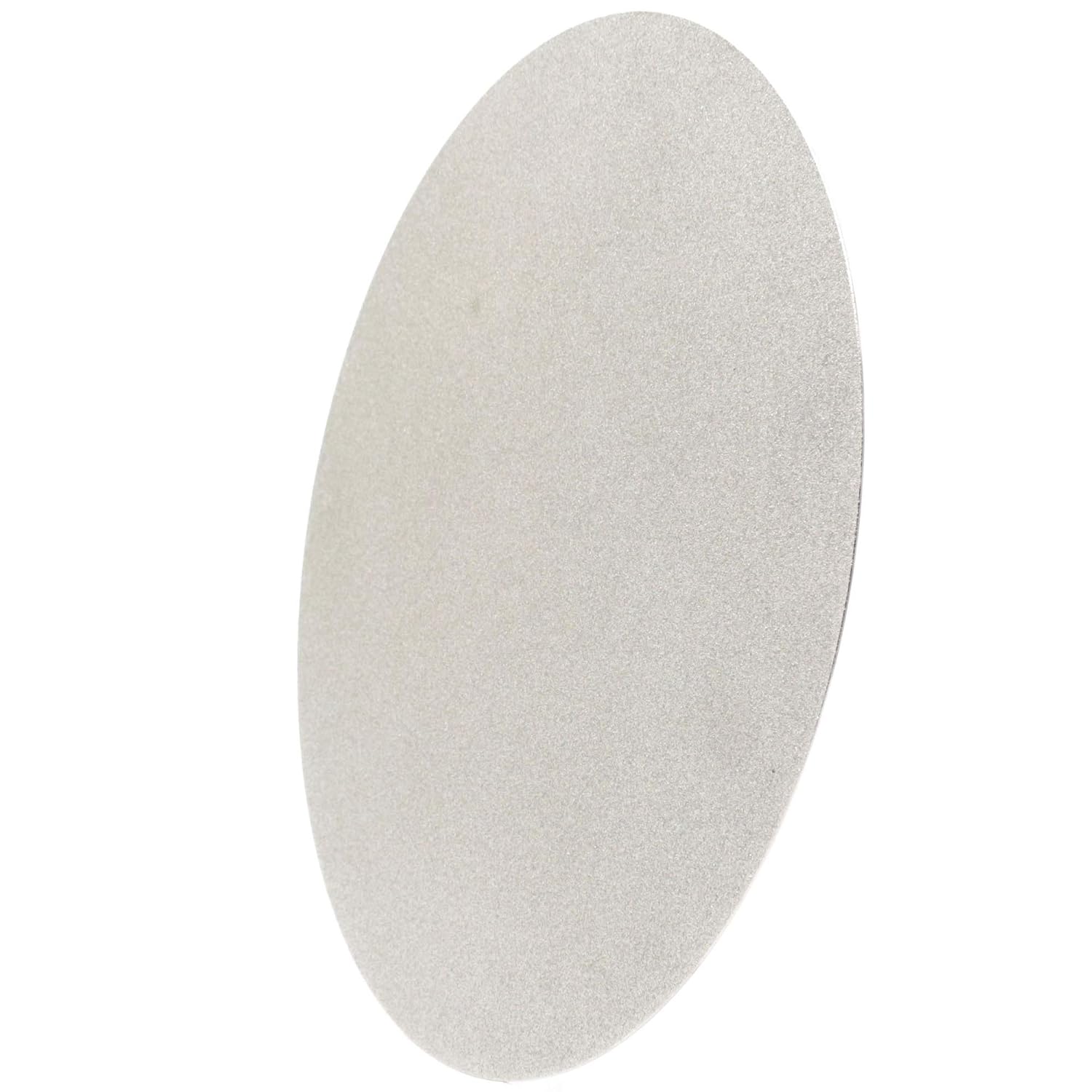

JINGLING NO Center Hole 8" inch Diamond Grinding Disc 120 Grit Flat Lap Disk Lapidary Tools for Stone
Product details
| Management number | 250158951 | Release Date | 2026/09/17 | List Price | US$1,146.00 | Model Number | 250158951 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
JINGLING No Center Hole 8" inch 200mm Diamond Coated Flat Lap Disk Grinding Disc Grit 120 Coarse Product Specification: Product Name: 8 inch Diamond Grinding Wheel, No Hole Flat Lap Disk, Diamond Lapidary Discs Outside diameter: 8" inch (200mm) Arbor hole: No Center Hole, and completed filled with diamond including center position Thickness: 1.3mm Grit: 120 Coarse Diamond coating Density: Perfectly high Diamond coating surface area: almost 100%,only one side is coated diamond Wet use recommended Suitable to grinding gemstone, jewelry, glass, rock, etc. These diamond discs are one of the finest discs manufactured for hobby, lapidary, glass applications The diameter flat lap wheels have a high density quality diamond coating They are absolutely flat and parallel to meet the most exacting faceting requirements Installation Recommendations Following three steps to complete the installation of the diamond flat disk Step 1. Sanded and cleaned the back of the disc firstly Step 2. Used industrial strength self adhesive Velcro strips 2 inch strips Step 3. Trimmed to the shape of the disc, then applied velcro to the machine base, it will works good PS: Industrial strength self adhesive Velcro strips, it's not included in the product and needs to be purchased separately Quick Tips 1. Recommended for rough and fine grinding on faceting material plus general lapidary grinding when precision is required 2. The laps are made with 1mm thick steel plate that has been machined true and flat. The lap is stiff enough to be used as is, but we recommend With The Use Of Aluminum Master Lap Also Available in Grits 60, 80, 100, 150, 240, 320, 400, 500, 600, 800,1000, 1200, 1500
- Product Name: 8 inch Diamond Grinding Wheel, No Hole Flat Lap Disk, Diamond Lapidary Discs
- Outside diameter: 8" inch(200mm); Thickness: 1.3mm; Grit: 120; Grit Type: Coarse
- Arbor hole: No Center Hole,the surface is completed filled with diamond, only one side is coated diamond
- The diamond discs are one of the finest discs manufactured for hobby, lapidary, glass applications
- Absolutely flat and parallel to meet the most exacting faceting requirements
| UPC | 708747500561 |
|---|---|
| ASIN | B07S46HCT5 |
| Model | 708747500561 |
| Grit Type | Coarse |
| Brand Name | JINGLING |
| Unit Count | 1 Count |
| Grit Number | 120 |
| Part Number | 708747500561 |
| Manufacturer | JINGLING |
| Item Diameter | 8 inches |
| Material Type | Carbon Steel, Diamond |
| Item Thickness | 1.3 millimeters |
| Item Dimensions | 8 x 8 x 0.04 inches |
| Number of Items | 1 |
| Number of Packs | 1 |
| Construction Type | Super-Abrasive |
| Compatible Devices | [Angle Grinder, Bench Grinder, Die Grinder] |
| Grit Material Type | Diamond |
| Compatible Material | Alloy Steel, Ceramic, Glass, Stainless Steel, Stone |
| Item Dimensions L x W | 8"L x 8"W |
| Maximum Rotational Speed | 5600 rpm |
| Industry Standard Identifier | 708747500561 |
| Recommended Uses For Product | Grinding |
